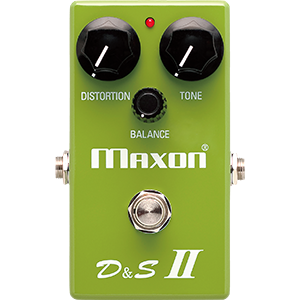

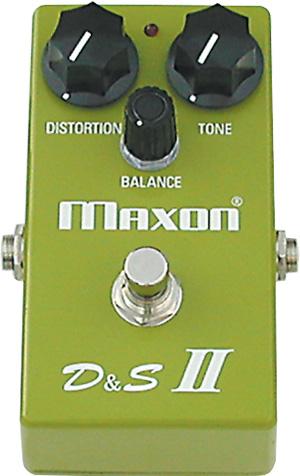

DISTORTION AND SUSTAINER II (D&S II)

The Maxon D&S II Distortion Sustainer pedal uses a dual op-amp design similar to the OD808, yet with increased low-end, output and gain. Distortion, Tone, and Balance knobs give the user complete control over the distortion effect providing subtle crunch to intense saturation. If you like the 808’s bark but could use a little more bite, the Maxon D&S II is the pedal for you.

Input Impedance: 500K Ohms

Input Jack: 1/4 inch standard phone jack

Output Impedance: 10K Ohms

Output Jack: 1/4 inch standard phone jack

Output: 1

Controls: Distortion, Tone, Balance

Switch: Normal/Effect

Noise (IHF-A): -110 dBu

Max Amplitude: 40 dBu

Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor

Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)

Current Consumption: 6 mA (9V) / 7 mA (10 V)

AC Adaptor: AC210N (option) Input: AC120V Output: DC9V/200 mA Center - / Sleeve +)

Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)

Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)

Weight: 260 g

Accessories: 9V Manganese dry cell battery (S-006P) x 1

Non-skid pad: x 1

Warranty Card: x 1

User's Manual: x 1

* All specifications are subject to change for improvement without notice or obligation.All brand names and product names are trademarks or registered trademarks of their respective companies.
