OVERDRIVE PRO PLUS (OD-9Pro+)
OVERDRIVE PRO PLUS (OD-9Pro+)

OVERDRIVE PRO PLUS (OD-9Pro+)

Regular price
$199.00
Sale price
$199.00
Shipping calculated at checkout.


  • Overdrive based on classic OD-9
  • Switchable 9- or 18-volt operation (runs on 9 VDC)
  • More Gain and Low-End (18-volt setting)
  • Mid Boost Switch add +3 dB @ 800 Hz
  • NJM4558 (JRC) Op Amp
  • True Bypass Switching
guitar world platinum award

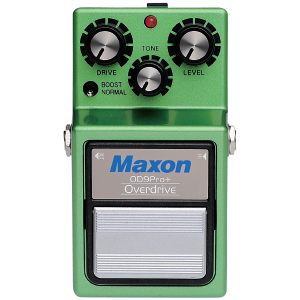

The Nine Series Overdrive Pro+ takes Maxon’s classic OD-9 circuit and serves it up with two side orders of Whoop-Ass in the form of 9/18 volt operation and a Mid Boost switch.

In 9-volt setting the Pro+ sounds and functions like the standard OD-9 with the added option of a healthy +3 dB of midrange boost at approximately 800 Hz (actual frequency is dependent on Control settings) – great for cutting through a band during solos.

When set to 18-volts the OD-9 Pro+ becomes an 800-pound Gorilla, offering up beefier lows, tighter saturation, improved dynamics and a chunky, aggressive pick attack that will make your amp sound and feel like it just took a Viagra.  Switch on the Mid Boost in this mode and let your solos breathe fire.

Don’t just play like the pros – play with the Pro Plus.

Input Impedance: 500K Ohms

Input Jack: 1/4 inch standard phone jack

Output Impedance: 10K Ohms or less

Output Jack: 1/4 inch standard phone jack

Outputs: 1

Equivalent Input Noise: -116 dB or less (input shorted IHF-A weighted)

Maximum Gain: Normal 43 dB (at 1.5 KHz), Boost 46 dB (1 KHz)

Controls: Drive, Tone, Level, Boost/Normal switch, 9/18 volt operation switch

Switch: Normal/Effect (true bypass configuration)

Power Supply: 9V Manganese dry cell battery (6F22) or special AC adaptor

Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)

Current Consumption:

35 mA (9 V) / 32 mA (10 V) at 18 volts
27 mA (9 V) / 27 mA (10 V) at 9 volts

Battery Life:
Manganese Dry Battery approx. 3 hours
Alkaline Dry Battery approx. 8 hours

AC Adaptor: AC210N (option) Input: AC120V Output: DC9V/200 mA Center - / Sleeve +)

Dimensions (whole): 74 mm (W) x 124 mm (D) x 54 mm (H)

Weight: 580 g

Accessories: 9V Manganese dry cell battery (S-006P) x 1

Warranty Card: x 1

User's Manual: x 1

* All specifications are subject to change for improvement without notice or obligation.All brand names and product names are trademarks or registered trademarks of their respective companies.
