- Modified version of classic OD808 Overdrive
- Extended frequency response improves note definition and clarity
- Increased Output (+5 dB over OD808) for extra Volume Boost
- Harder clipping yields more aggressive, amp-like Distortion
- Buffered Bypass Switching
For over 40 years Maxon’s legendary "808" overdrive circuit has been an essential ingredient to achieving great guitar tone. Whether it’s used as a booster to drive an amp, as a Dirt box for crunch and extra sustain or as an EQ to shape the tone of a high-gain amp, the 808 in its many incarnations has shown up in more rigs and on more recordings than anyone would care to count.
Yet for all its legendary status, there are some who wish the 808 offered just a little bit more – and for those players obsessed with excess, Maxon has created the OD808X Overdrive Extreme.
The Extreme shares the same basic circuit architecture as the OD808. However, several key component values have been altered to achieve what may be the ultimate overdrive tone.
The OD808X offers a wider frequency response than a stock OD808, with an extended hi-frequency tonal range that offers additional clarity without becoming harsh.
It also features a harder clipping pattern than the standard model, creating a searing, full-bodied drive tone that helps chords ring and notes sing.
An additional +5 dB of output level assures that the OD808X will punch through the densest of mixes with an authority that most OD’s just can’t match. Its additional level and top-end also allows the X to be stacked in a chain of pedals without getting buried under other Dirt boxes.
The OD808X offers the same “feel” and amazing transparency that the 808 is famous for – digging in you’ll get more break-up; rolling back your volume will clean things up and you’re guitar will sound like your guitar.
Beyond that, all similarities end and all bets are off. Comparing the X to a stock OD808 is kind of like bringing a gun a knife fight – it’s excessive, but you know it will get the job done!

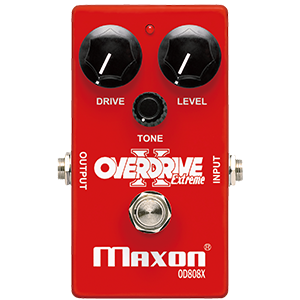

When even legendary overdrives just aren’t enough, it’s time to go to the extreme – the OD808X Overdrive Extreme.
The OD808X takes Maxon’s classic 808 circuit to the extreme; adding extra Drive, Level and High frequencies to create a versatile, amp-like overdrive with excellent note clarity that won’t get lost in a mix.
The OD808X features a low-impedance buffered bypass, allowing it to drive long cable lengths or other effect units without loss of signal.
Input Impedance: 500K Ohms
Output Impedance: 10K Ohms
Maximum Gain: 40dB (2 kHz)
Input Noise: -110dB or less (Input shorted, IHF-A weighted)
Controls: DRIVE, TONE, LEVEL
BYPASS/EFFECT (Buffered Electronic Bypass)
Indicator: BYPASS/EFFECT LED
Power Supply: 6F22/6LF22 9V battery x 1 or Maxon AC adaptor
Power Consumption: 7.2mA max. / 9VDC
9VDC manganese battery 78 hours 25 deg C (FUJITSU 6F22)
9VDC alkaline battery 114 hours 25 deg C (TOSHIBA 6LF22)
Dimensions: 70(W) x 113(D) x 56(H) mm
Weight: Approx. 300g (incl. battery)
Accessory: 6F22 9V battery x 1, operating manual* 0dB = 0.775Vrms
* Be sure the battery is firmly connected to battery snap with the correct polarity.
* All specifications are subject to change for improvement without notice or obligation. All brand names and product names are trademarks or registered trademarks of their respective companies. All Maxon information current as of 2020.
