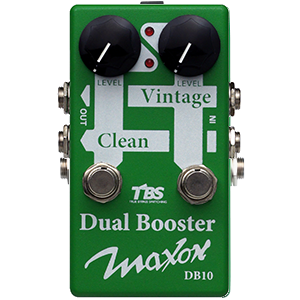

DUAL BOOSTER (DB10)

DB10 DUAL BOOSTER

• Two independent Boost circuits in one compact chassis
• Clean channel offers +20 dB of boost with flat frequency response
• Vintage channel offers +20 dB of boost with high-end roll off
• Separate input/output jacks for each channel
• Cascade channels or place a pedal in between them
• Works in FX loop or front-end of amp
• True Bypass Switching x 2

A unique concept in booster design, the DB10 features two completely independent boost circuits in a single compact housing.

The Clean (Left) channel offers up to +20 dB of clean boost with a completely flat frequency response.

The Vintage (Right) channel is Maxon’s take on the classic Treble Booster circuit.  It offers up to +20 dB of boost, but with a subtle high-frequency roll-off that increases as the Level is turned towards maximum.

Each circuit has its own input and output jacks, allowing them to be cascaded into one another in any order.  Place an overdrive or distortion in-between the channels for additional tonal options – super-saturated overdrive that can then be level-boosted for solos, etc.

One of the many great features of the DB10 is the proximity of the bypass switches to one another, allowing the user to hit both switches simultaneously.

Independent status LED’s indicate which channel is engaged and both channels feature True Bypass Switching using a 3PDT switch. Battery or DC (9-18 V) power options.

"I can't tell you how much I am loving the Dual Booster. I keep thinking how I ever went on stage without one before. I am probably turning the Dual Booster on and off more than any other effect on my pedalboard. It works perfectly!

Thanks so much again for all that you do for me. I really appreciate your support."

Jerry Cortez - Tower of Power

Compare to "booster" pedals out there such as Suhr Koko Boost, Exotic Rc Booster, Ac Booster, Ep Booster, Pigtronics Class A boost, Fulltone Fat Boost, Tc Boost etc...

TECH TALK:

The DB10 features mechanical true bypass switching on both channels via two x Fujisoku 3PDT switches.

Input Impedance: 500K Ohms

Output Impedance: 10K Ohms

Controls: Vintage LEVEL, Clean LEVEL

Switch:
Vintage Bypass/Effect (3PDT True Bypass)
Clean Bypass/Effect (3PDT True Bypass)

Indicator: Vintage Bypass/Effect LED, Clean Bypass/Effect LED

Gain:
Vintage 6 to 19dB at 400Hz
Clean 0 to 21dB at 400Hz

Equivalent Input Noise:
Vintage -95dBu or less (Input shorted, IHF-A weighted)
Clean -105dBu or less (Input shorted, IHF-A weighted)

Power Supply: 6F22/6LF22 9V battery x 1 or Maxon AC adaptor

Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)

Power Consumption: 11mA / 9VDC

Battery Life:
9VDC manganese battery 41 hours 25 deg C (FUJITSU 6F22)
9VDC alkaline battery 67 hours 25 deg C (TOSHIBA 6LF22)

Dimensions (whole): 70(W) x 113(D) x 54(H)mm (with protrusion)

Weight: Approx. 290g (incl. battery)

Accessory: 6F22 9V battery x 1, operating manual* 0dB = 0.775Vrms

* All specifications are subject to change for improvement without notice or obligation.All brand names and product names are trademarks or registered trademarks of their respective companies.
