CABLE - Y-SPLITTER

The Cable-Y Splitter Cable allows the user to power two pedals from one Power-All or one leg of a Daisy-Chain cable.* This allows for power chaining of additional pedals without a adding a second Daisy-Chain cable.*

The C-Y offers the following features:

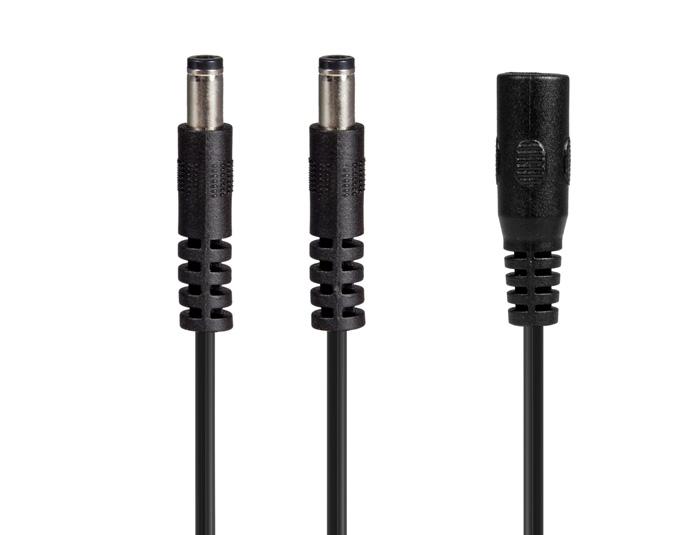

• 1 x Female Barrel jack to connect to Power-All or other power source (C-M/M & C-BLCable may be required to connect C-Y to brick-style power supplies)

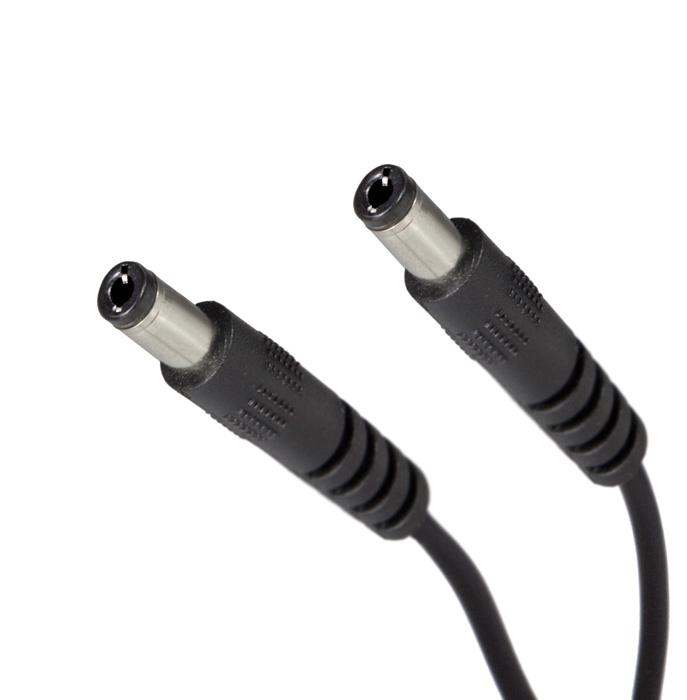

• 2 x straight Male Barrel plugs to connect to pedals or other cables.
• Spring-loaded male plugs to reduce chance of disconnection
• 26-gauge Cable with oil-resistant vinyl sheath
• Approximately 15” (approx. 381 mm) cable length between plugs
• NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

SPECIFICATIONS:

• Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
• Male Barrel Plugs (2): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
• Cable: 26-gauge, OFC with oil-resistant vinyl sheath
• Approximately 15” (approx. 381 mm) cable length between plugs

TIPS:

• Output polarity of C-Y’s Male Barrel Plugs will match the polarity of source connected to Female Barrel Jack (i.e. if Power Supply is tip-negative, then C-Y outputs will all be tip-negative)
• Connect C-M/M Cable to C-Y’s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
• Connect additional Daisy-Chains or C-Y’s to C-Y’s male Barrel Plugs to power additional pedals*
• Connect Cable-Red to female jack C-Y to reverse the output polarity of all male plugs
• Connect Cable-Red to male plug on C-Y to reverse the output polarity of that plug (may not work with positive-ground-to-chassis pedals)
• Use C-Cap to cover unused Male Barrel Plugs & prevent short-circuits

NOTE:

All effect units to be powered should have the same ground configuration to-chassis. Effects with different ground configurations cannot be powered off the same PA-9 unit without using the Ground Hound ground isolator unit (sold separately). Please contact us at info@godlyke.com for more information.

*Sum of current draws of pedals used should not exceed maximum output current of Power Supply.
