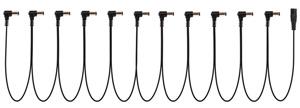

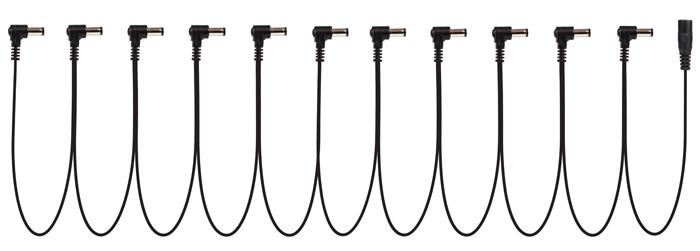

CABLE - 11-LEAD RIGHT-ANGLE DAISY CHAIN

 The Power-All Cable-11/R Daisy Chain allows the user to connect up to eleven pedals in series to a single power source.*

The C-11/R offers the following features:

• 1 x Female Barrel jack to connect to Power-All or other power source (C-M/M & C-BL Cable may be required to connect C-11/R to brick-style power supplies)
• 11 x right-angle Male Barrel plugs to connect to pedals or other cables
• Spring-loaded male plugs to reduce chance of disconnection
• 26-gauge Cable with oil-resistant vinyl sheath
• 10.5” (approx. 264 mm) Cable length between plugs
• NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

SPECIFICATIONS:

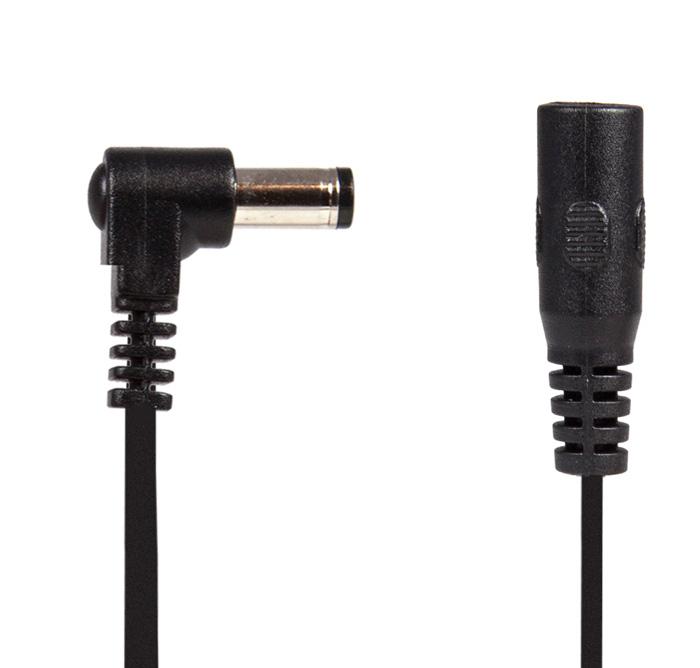

• Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
• Male Barrel Plugs (11): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
• Cable: 26-gauge, OFC with oil-resistant vinyl sheath
• 10.5” (approx. 264 mm) Cable length between plugs

TIPS:

• Output polarity of C-11/R’s Male Barrel Plugs will match output polarity of power supply connected to Female Barrel Jack (i.e. if the Power Supply is tip-negative, then all C-11/R outputs will be tip-negative)
• Connect C-M/M Cable to C-11/R’s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
• Connect additional Daisy-Chains to C-11/R’s last male Barrel Plug to power additional pedals*
• Connect Cable-Red to female jack of C-11/R to reverse the output polarity of all male plugs
• Connect Cable-Red to male plug on C-11/R to reverse the output polarity of that plug
• Use C-Cap to cover unused male Barrel Plugs & prevent short-circuits

NOTE:

All effect units to be powered should have the same ground configuration to-chassis. Effects with different ground configurations cannot be powered off the same PA-9 unit without using the Ground Hound ground isolator unit (sold separately). Please contact us at info@godlyke.com for more information.

*Sum of current draws of pedals used should not exceed maximum output current of Power Supply.
