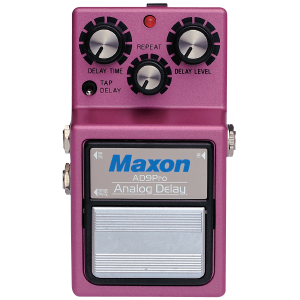

The new AD-9 Pro model improves on one of Maxon’s most coveted models in order to produce the best-sounding, most reliable analog delay ever. Featuring 4 of Maxon’s proprietary MC4107D bucket brigade IC’s, and the world’s first RMS level sensor and companding noise reduction system, the AD-9 Pro delivers 450 millseconds of the most transparent analog delay sound ever available in a stompbox format.
Offering improved headroom, the AD-9 Pro can accept any input signal and will work in an amplifier's effects loop as well as its front-end.
The AD-9 Pro also features a switchable multi-head tape echo simulator function. This feature provides interesting new delay effects such as the “Ping Pong” repeats made famous by Tape Echo units as well as ambient effects that recreate the echoes of a large concert hall with stunning accuracy.
AD-9 Pro is outfitted with mechanical true bypass switching on both wet and dry outputs by use of a 4PDT switch assuring pure, unaltered tone when bypassed.
In a world that grows more “digital” by the day, the Maxon AD-9 Pro sets a new standard of analog innovation and audio purity.
"If you want a delay pedal with rich tone and a ton of vibe get a Maxon AD-9 Pro! I love the ability to switch from single to dual head delay modes." - Devin Bronson – Guitarist with Avril Lavigne
"Maxon pedals are just simply amazing. Thanks for making pedals that just sound great, all the fucking time!" - Tyler Connolly - Theory of a Deadman
Input Impedance: 500K Ohms
Output Impedance: 10K Ohms
Residual Noise: -100 dB or less (IHF-A)
Delay Time: 20 mSec to 450 mSec
Equivalent Input Noise: 116 dB or less (IHF-A)
Controls: Delay Time, Feedback, Delay Level
Switch: Single/Dual Mode, Effect
Operating Voltage: 9V
Power Consumption: DELAY TIME MIN 39mA/DC.9V 38mA/DC.10V
Dimensions: 74 mm (W) x 124 mm (D) x 54 mm (H)
Weight: 80 grams (including battery)
Battery: 9V battery (6LR61 or 6F22) x 1 or Maxon AC adaptor
Battery Life: Manganese dry battery more than 2 hours 25deg C / 77deg F (Panasonic 6F22NB) Alkaline dry battery more than 8 hours 25deg C / 77deg F (Panasonic 6LR61G)
Option: Maxon AC adaptor (Maxon AC210N for North America)
* All specifications are subject to change for improvement without notice or obligation.All brand names and product names are trademarks or registered trademarks of their respective companies.
