OVERDRIVE (OD808)
OVERDRIVE (OD808)
OVERDRIVE (OD808)

OVERDRIVE (OD808)

Regular price
$149.00
Sale price
$149.00
Shipping calculated at checkout.

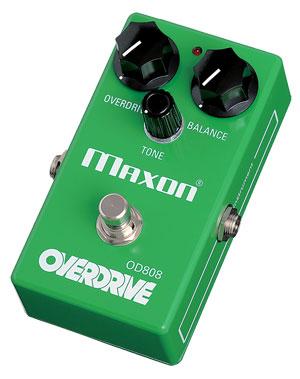

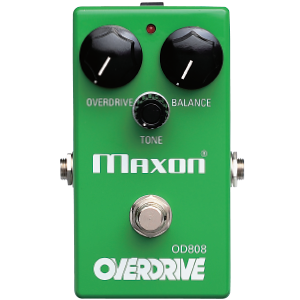

The quintessential Maxon overdrive pedal – often imitated but never matched. Identical to the original circuit and featuring the JRC4558 IC chip, the Maxon OD808 reissue offers the smooth, natural overdrive of a full-up tube amplifier in a compact pedal. Incredibly dynamic, the Maxon OD808 pedal responds precisely to playing nuances and allows your instrument’s natural tone to shine through.

Tech Specs:

Input Impedance: 500K Ohms
Input Jack: 1/4 inch standard phone jack
Output Impedance: 10K Ohms
Output Jack: 1/4 inch standard phone jack
Output: 1
Controls: Drive, Tone, Balance
Switch: Normal/Effect
Noise (IHF-A): -110 dBu
Max Amplitude: 35 dBu
Power Supply: 9V Manganese dry cell battery (S-006P) or special AC adaptor
Power Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)
Current Consumption: 5 mA (9V) / 6 mA (10 V)
AC Adaptor: AC210N (option) Input: AC120V Output: DC9V/200 mA Center - / Sleeve +)
Dimensions (main body): 61 mm (W) x 112 mm (D) x 35 mm (H)
Dimensions (whole): 70 mm (W) x 112 mm (D) x 55 mm (H)
Weight: 260 g
Accessories: 9V Manganese dry cell battery (S-006P) x 1
Non-skid pad: x 1
Warranty Card: x 1
User's Manual: x 1

* All specifications are subject to change for improvement without notice or obligation.All brand names and product names are trademarks or registered trademarks of their respective companies.
